Registry

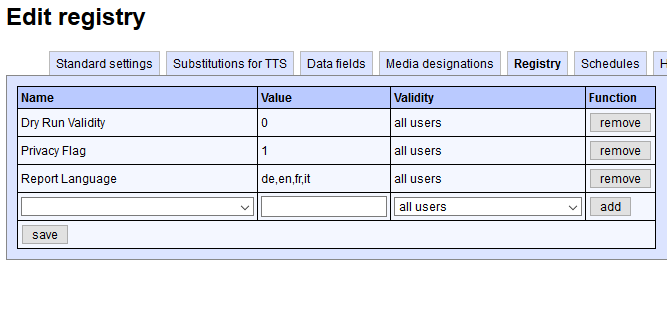

You can make many detailed configurations in the registry in order to customise eAlarm to meet your needs, e.g. to manage co-user rights, automatically send log files, set login timeouts and much more. To add a new entry, select it in the drop-down menu, enter the appropriate values, specify the users for whom the entry should apply and confirm by clicking “Add”. Remove entries by clicking on “Remove”. The table below describes the configuration elements and their valid values: Values separated by commas must be entered without spaces (e.g. de,fr,it).
| Name | Function/description | Permitted values | Standard |
|---|---|---|---|
| Add text coordinate | Specifies coordinates for an alert | 0 or 1 (0: inactive, 1: active) | |
| Alert sheet (customer-specific option) | Name of the medium designation to be used for the alert sheet | Valid medium designation | Empty |
| Alert log file | Name of the medium designation to be used for the alert log file | Valid medium designation | Empty |
| Alert Number Of Columns (basic module) | Number of columns in the column view (alert) | Number between 1 and 4 (at least one column, max. of four columns) | 4 |
| Alternative Feedback Text | Alternative feedback text for SMS report delivery | 0 or 1 (0: inactive, 1: active) | |
| Always Alert Group No. (basic module) | Group that is automatically added to EVERY alert | LID of a group consistent with group export | Inactive |
| Auto Advance Alert Deputy Seconds (basic module) | Automatic escalation to the next deputy x seconds after a deputy, i.e. x seconds after a deputy was triggered, the next is triggered regardless of whether the media priority list was run through. The prerequisite, of course, is that the predecessor may not have sent acknowledgement up to this point. | Whole number between 1 and 900. A number around 180 is advisable depending on how many media an average participant has assigned. Value 1 → alert triggered simultaneously to all deputies. | 300 |
| Auto Advance Alert Fax Seconds (e-mail/fax module) | Automatic escalation to the next medium x seconds after a fax, i.e. after a fax, there is a waiting period of x seconds for feedback before the next medium on the media priority list is used. | Whole number between 1 and 300. A value greater than 10 is advisable. | 10 |
| Auto Advance Alert SMS Seconds (basic module) | Automatic escalation to the next medium x seconds after an SMS, i.e. after an SMS, there is a waiting period of x seconds for feedback before the next medium on the media priority list is used. | Whole number between 1 and 300. A value between 60 and 300 seconds is advisable. | 120 |
| Auto Advance Alert Call Seconds (alert call module) | Automatic escalation to the next defined medium, x seconds following an alert call. This means that after an alert call is made, there is a waiting period of x seconds for feedback before the next medium on the media priority list is used. | Whole number between 1 and 300. A value between 75 and 300 seconds is advisable (reason: no feedback can be expected in a period of less than 60 seconds, because it takes an average of 50 seconds for the call to go through and the connection to be established. If a shorter timeout is set, this can result in the subscriber already being alerted on the next medium while he is still listening to and acknowledging the alert call.) | 240 |
| Auto Advance Alert Email Seconds (E-Mail/Fax module) | Automatic escalation to the next medium x seconds after an e-mail, i.e. after an e-mail, there is a waiting period of x seconds for feedback before the next medium on the media priority list is used. | Whole number between 1 and 300. A value between 10 and 60 seconds is advisable. | 10 |
| Auto Advance Alert Pager Seconds (Pager module) | Automatic escalation to the next defined medium, x seconds following a pager call. In other words, after a pager call is made, there is a waiting period of x seconds for feedback before the next medium on the media priority list is used. | Whole number between 1 and 300. A value greater than 60 seconds is advisable, because it takes around 30 seconds to transmit the page. | 120 |
| Auto Advance Alert Serial Seconds (basic module) | Specifies the length of waits between individual subscribers in the case of vertical escalation. | Whole number between 1 and 300. Please note: If the auto advance time specified is too short, in some circumstances it might not be possible to alert all of an alert subscriber's alert media. | 240 |
| Auto Close Alert After Minutes (basic module) | Automatic alert termination after x minutes | Whole number greater than 1 | Inactive |
| Auto Close Alert Light Green (basic module) | Automatic alert termination once the traffic light switches to green (see Light Percent Green) | 0 or 1 (0: inactive, 1: active) | Inactive |
| Auto Close Conference After Minutes | Specifies in minutes how long a conference is active. | Whole number greater than 1 | 60 |
| Basket Commit Delayed (customer-specific) | Delayed release of basket in seconds after midnight. At this point, an approved shadow table is copied to the live table. | Whole number greater than 1 … | Inactive |
| Billing Mail To (basic module) | After completing an alert, automatically e-mail the billing log file to | Valid e-mail address | Inactive |
| Call PIN Auth (Recipient identification for alert calls module) | For alert calls, the ID PIN of the recipient is requested before the voice output of the message | 0 or 1 (0: inactive, 1: active) | Inactive |
| Call Waytime Acknowledge (Alert call module) | Waytime entry for each DTMF after positive acknowledgement of an alert call | Whole number greater than 0 (0: inactive, >0: active). If the participant does not specify the waytime, the value set here is used. | Inactive |
| Check Min Max Unit Value | Switches "Check Min Max Unit Value" on/off for groups/templates/conferences | 0 or 1 | |
| Check Unit Edit | Switches editing periods on/off for groups/templates/conferences | 0 or 1 | |
| Conference Min Members (Teleconference(s) module) | Minimum number of conference subscribers (Y) – if this number is exceeded for X seconds, the conference is automatically ended (for X, see "Conference Timeout Seconds"). | Whole number between 1 and maximum no. of conference participants | 1 |
| Conference Timeout Seconds (Conference call(s) module) | Conference timeout (X) – if fewer than Y subscribers are in the conference for X seconds, it is automatically ended (for Y, see "Conference Min Members"). | Whole number greater than 1. A value between 60 and 900 seconds is advisable. | 300 |
| Custom Report Columns (basic module) | Defines which optional fields should be displayed in the alert log file. | Name of defined optional fields. If there are multiple fields, these must be separated by " | " (Alt Gr + 7). Maximum 3 columns. |
| Custom Report Footer (basic module) | Defines the footer in the customer-specific page layout (e.g. alert log file and log) | Any, e.g. contact information. If there are multiple lines, these must be separated by " | " (Alt Gr + 7). Up to 3 lines are possible. |
| Custom Report Header (basic module) | Defines the header in the customer-specific page layout (e.g. alert log file and log) | Any, e.g. organisation name. Only possible on one line. | Inactive, i.e. empty (the Swisscom logo cannot currently be replaced in the header). |
| Deactivate 2FA | Status: 1 (active) If the 2FA function is deactivated, it is no longer mandatory for the user. The user can decide for themselves whether they want to use 2FA or not. Status: 0 (inactive), recommended The use of the 2FA function becomes mandatory for all users by deactivating this key. Before deactivating, make sure that the users with login have stored their mobile phone number and/or email address in the account. The easiest way to check whether all users have completed the entries is the “subscriber with login” report. Go to: Mutation, Im-/export and download the report. |
0 or 1 (0: inactive, 1: active) | Inactive |
| Definite identification | Determines which optional fields should be displayed in the subscribers' names. | Names of optional fields | Inactive |
| Disable Combox Key (Teleconference(s) module) | Disables the keystroke to enter the teleconference. IMPORTANT: if this is disabled, comboxes and answering machines also make their way into teleconferences. | 0 or 1 (0: inactive, 1: active) | Inactive |
| Disable Flash SMS | Switches off the Flash SMS (SMSPrio) alert option so that SMS messages are sent in normal mode | 0 or 1 (0: inactive, 1: active) | Flash is on by default |
| Dry Run Validity (Dry Run module) | Determines whether subscribers should be taken into consideration in the Trigger Dry Run value. | 0 or 1 (0: do not consider, 1: consider) | 0: do not consider |
| EalarmApp Fallback On Info (eAlarmApp module) | If an info alert is sent, this determines whether a fallback is sent or not | 0 or 1 | Inactive |
| EalarmApp Optional Text (eAlarmApp module) | The app can also be used to send other answers in addition to "yes"/"no" | "Text" | Empty |
| EalarmApp Fallback On Info (eAlarmApp module) | Fallback mode | "sms", "flash-sms", "disabled" | Flash SMS |
| EalarmApp Optional Waytime (eAlarmApp module) | Can specify the waytime in the app, default is "Call_waytime_acknowledge" | 0 or 1 | 0 |
| Emergency Call Always Add Group No (Emergency alert module) | Group that is automatically added to EVERY emergency alert | Inactive | |
| Emergency Call Mail To (Emergency alert module) | After every modification made, automatically send the updated emergency alert list by e-mail to | Valid e-mail address | Inactive |
| Emergency Call Report To (Emergency alert module) | After every emergency alert, automatically send the emergency alert conference log file by e-mail to | Valid e-mail address | Inactive |
| Email Alert Subject (E-mail/Fax module) | Replaces XXX in the subject prefix for the e-mail alert "[ALERT XXX]". | Any, e.g. organisation abbreviation. | Inactive, i.e. the default prefix is used: "[ALERT eAlarm]". |
| Export Template Group | Export for alert templates with groups | ||
| Feedback Hide Progressbar | Hides the feedback progress bar | 0 or 1 | |
| Feedback SMS Group Limit (feedback SMS by group) | Maximum number of groups in SMS feedback | 0 or a whole number | |
| Info-SMS Originator (basic module) | Identifies the sender for the info SMS. | Any, e.g. organisation abbreviation. Length is restricted to 8 characters! | Inactive, i.e. the default sender is used. |
| Light Percent Green (basic module) | Threshold value for green light of the traffic light, i.e. once the defined percentage of positive acknowledgements has been reached, the traffic light switches to green. (see also Auto Close Alert Light Green) | Whole number between 1 and 100 (must be greater than Light Percent Yellow) | 80% |
| Light Percent Yellow (basic module) | Threshold value for yellow light of the traffic light, i.e. once the defined percentage of positive acknowledgements has been reached, the traffic light switches to yellow. | Whole number between 0 and 99 (must be less than Light Percent Green) | 50% |
| Login IP Restriction IP (customer-specific) | Defines the IP or IP range from which a co-user or a permission group may log in. IMPORTANT: These users can NO longer log in from other IP ranges! | IP address. Use "*" for placeholders or IP ranges. | Inactive |
| Login Parallel Sessions | A user with the same credentials can simultaneously log into several workstations several times in eAlarm. Their latest actions (for example, completing the alert list etc.) are shown in the other sessions or workstations. This means the sessions mutually influence one another. | Whole number between 0 and 20 | |
| Login Timeout Seconds (basic module) | Login timeout after x seconds | Whole number greater than 1. | 900 (=15 min) |
| Mass Alert Threshold | Number of subscribers that determines when an alert is considered to be a major alert | 0 or a positive whole number | Local |
| Mass Alert Delay | Delay in seconds in the event of a major alert for all media according to eAlarmApp | 0 or a positive whole number | |
| Max. Alert Participants Warnlevel | A warning is issued with the alert if the number of subscribers is equal to or greater than this number | Whole number greater than 1 | 0 - deactivated |
| Max. Alert Participants Blocklevel | Alerting is prevented (GUI) if the number of subscribers is equal to or greater than this number | Whole number greater than 1 | 0 - deactivated |
| Max Conference Show (Conference Call module) | Number of conferences displayed in the alert view | Whole number greater than 1 | 100 |
| Max Events Show (Alert Event module) | Number of events displayed in the alert view | Whole number greater than 1 | 100 |
| Max Scenario Show (Alert Scenario module) | Number of scenarios displayed in the alert view | Whole number greater than 1 | 100 |
| Max Templates Show (Alert Templates module) | Number of templates displayed in the alert view | Whole number greater than 1 | 100 |
| Memberlist Keep Filter On Login (basic module) | Keeps the most recently used filter for the participant list beyond the session. | 0 or 1 (0: inactive, 1: active) | Inactive |
| Multiple Folder In Tree (customer-specific) | Allows the same group to be added to a tree multiple times. | 0 or 1 (0: inactive, 1: active) | Inactive |
| Multiple Sessions | One user with the same credentials can simultaneously log into eAlarm at several workstations with "Login Parallel Sessions". However, their current actions are not shown in the other sessions or workstations. The activation of this key means the sessions are deemed independent without one session affecting another. | 0 or 1 | |
| Num Temporary Texts (basic module) | Defines the number of displayed "Previous alert texts". Enables "Show Temporary Texts". | Whole number greater than 1. | 5 |
| Parallel Alert Is Default (basic module) | Sets "Parallel medium" as the default. | 0 or 1 (0: inactive, 1: active) | Inactive |
| PDF on Demand | Permits PDFs to be generated on the feedback page | ||
| Privacy Flag (basic module) | Enables the "Private" checkbox for the alert media. Private alert media are concealed (e.g.: +4179123XXXX) | 0 or 1 (0: inactive, 1: active) | Inactive |
| Report Language (basic module) | Author language of the alert log files (applies for the entire customer account!) | de: German, fr: French, it: Italian, en: English (English language version module). Multiple languages must be separated by ",". The language listed first is the default language. | en |
| Report Window Days (basic module) | Defines the number of days that are initially loaded under closed alerts. | Whole number between 1 and 100 | 100 |
| Send Alert Log (basic module) | Defines that the alert log should ALWAYS be sent with the log file. | 0 or 1 (0: inactive, 1: active) | Inactive |
| Send Alert Report Fax (E-Mail/Fax module) | After completing an alert, automatically send alert log file by fax to | +41xxxxxxxxx or +4186079xxxxxxx | Inactive |
| Send Alert Report Mail (basic module) | After completing an alert, automatically send alert log file by e-mail to | Valid e-mail address | Inactive |
| Send Alert Report SMS | After completing an alert, automatically send an alert log file by SMS to | Valid mobile number +417xxxxxxxx | Inactive |
| Send Alert Summery Fax (E-Mail/Fax module) | During a running alert, sends a feedback summary by fax to this number every X seconds. X is defined under "Send Alert Summary Interval Seconds". | +41xxxxxxxxx or +4186079xxxxxxx | Inactive |
| Send Alert Summary Interval Seconds (basic module) | Defines the interval in which the feedback summaries are sent as long as an alert is open. | Whole number greater than 1. A value between 60 and 900 seconds is advisable. | 180 |
| Send Alert Summary Mail (basic module) | During a running alert, sends a feedback summary by e-mail to this number every X seconds. X is defined under "Send Alert Summary Interval Seconds". | Valid e-mail address | Inactive |
| Send Alert Summary SMS (basic module) | During a running alert, sends a feedback summary by SMS to this number every X seconds. X is defined under "Send Alert Summary Interval Seconds". | Valid mobile number +417xxxxxxxx | Inactive |
| Send Billing Info (basic module) | Defines that the billing info should ALWAYS be sent with the log file. | 0 or 1 (0: inactive, 1: active) | Inactive |
| Send Bounce Mail List To (basic module) | E-mail address to which the bounced e-mails will be sent. | Valid e-mail address | Inactive |
| Set User Dataset (check user data set) | Defines which data need to be checked when editing a subscriber. | Text with valid entries separated by pipes - pin, rank, last name, first name, street, post code, town, canton, language, alert, group, optional: fieldname1, fieldname2, … | name, first name, alert, language |
| Show Admin Registry (basic module) | Assign users the right to configure the "General SMS trigger". | 0 or 1 (0: inactive, 1: active) | Inactive |
| Show all alerts | Permits all running alerts to be displayed on the feedback page | 0 or 1 | |
| Show General SMS Trigger (Remote Trigger module) | Assign users the right to configure the "General SMS trigger". | 0 or 1 (0: inactive, 1: active) | Inactive |
| Show Languages (basic module) | Used or displayed alert languages (applies for the entire customer account!) | de, fr, it, en (English language version module) (multiple languages separated by comma: de,fr,it) | de,fr,it,(en) |
| Show Temporary Texts (basic module) | Show history of previous texts in the text selection. The number is defined via "Num Temporary Texts". | 0 or 1 (0: inactive, 1: active) | Inactive |
| Suppress SMS Reply (Remote Trigger module) | Suppresses the SMS acknowledgement for SMS trigger | 0 or 1 (0: inactive, 1: active) | Inactive |
| Table Block Size | Default number of completed alerts | Whole number | 100 |
| Tree Session Persistent | The current tree view is saved when the page is left | 0 or 1 (0: inactive, 1: active) | Inactive |
| User Allow Billing-Info (basic module) | Assign co-users the right to view the billing info PDFs. | 0 or 1 (0: inactive, 1: active) | Inactive |
| User Allow Gis Config (customer-specific) | Assign users the right to manage locator beacons and end devices. | 0 or 1 (0: inactive, 1: active) | Inactive |
| User Allow Import Export (basic module) | Assign users the right to use the import/export function | 0 or 1 (0: inactive, 1: active) | Inactive |
| User Graphql Access | Privacy: GraphQL data query sharing should be limited to the number of subusers required for this specific function. | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Change Remote Alerting | Co-users may not change the trigger code for the objects | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Create Clocks (Deployment and rotation planning module) | Co-users may not create any new time controls | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Create Conference (Conference Call module) | Co-users may not create any conferences. | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Create Event | Co-users may not create any new events | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Create Members (basic module) | Co-users may not create any new subscribers | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Create Rotation Group | Co-users may not create any new rotation groups | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Create Scenarios (Alert Templates and Scenarios module) | Users may not create any new scenarios | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Create Templates (Alert Templates and Scenarios module) | Co-users may not create any new alert templates | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Create Text (basic module) | Users may not access the "Change texts" menu. | 0 or 1 (0: inactive, 1: active) | Inactive |
| User No Create Units (basic module) | Co-users may not create any new roots or groups | 0 or 1 (0: inactive, 1: active) | Inactive |
| User Save Column Layout (basic module) | Each co-user may define the layout of the alert columns and the default tree for their logins themselves | 0 or 1 (0: inactive, 1: active) | Inactive |
| User Show Own Alerts Only | Hides subscriber media for which the co-user is not authorised to make modifications | 0 or 1 (0: inactive, 1: active) | Inactive |
| User Show Own Alerts Only (basic module) | Each user only sees their own alert or all alerts in the same permission group when the authorisations are configured via permission groups. | 0 or 1 (0: inactive, 1: active) | Inactive |
| Userlist Max Entries | Maximum number of entries in the subscriber list | -1 to 10000 (-1: infinite) | 10000 |
